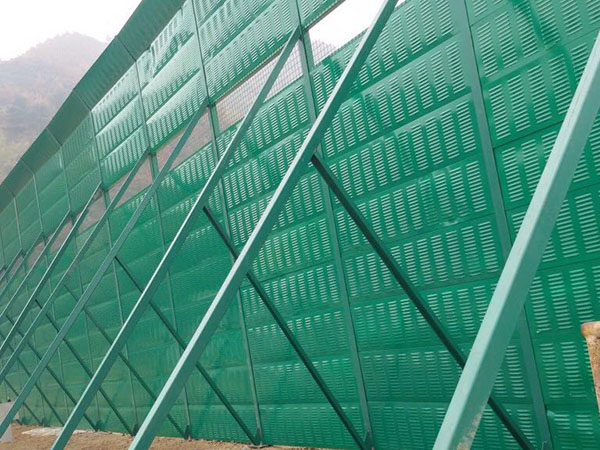

Common specifications of factory sound barrier:
Screen size: 500mm * 2000mm, 500mm * 3000mm, etc. can be customized.
The thickness of galvanized sheet of single panel: 0.6mm, 0.7mm, 0.8mm, 1.0mm, 1.2mm, etc. can be customized.
Total thickness of screen: 80mm, 100mm, etc. can be customized.
Column: H-shaped steel 100mm * 100mm * 6 * 8mm, 125mm * 125mm * 7 * 10mm, etc. can be customized.
Height: 3M, 3.5m, 4m, 4.5m, 5m, 5.5m, 6m, etc. can be customized.
Style: blind hole sound barrier, micro hole sound barrier, vertical sound barrier, top corner type sound barrier, top arc sound barrier, overall arc sound barrier, transparent sound barrier, concave convex through hole sound barrier, etc.
Material: aluminum plate sound barrier, metal sound barrier, color steel sound barrier, glass sound barrier, PC plate sound barrier, etc.
Color: dark grey, light grey, white, green, blue, etc. can be customized.
Surface treatment: galvanized + sprayed.
Stability: increase diagonal bracing.
The main components of the noise barrier in the plant: foundation, column, screen body, fastener, seal, and some also include the top structure.
1) Noise barrier screen body in the plant: galvanized plate, back plate, keel, glass wool, DuPont film, front punching rate more than 25%;
2) Noise barrier column in the plant area: H-shaped steel, flange chassis, diagonal brace, inner rib plate and outer rib plate;
What advantages can the noise barrier in the plant bring to the power plant? Generators, especially thermal power plants, have a lot of mechanical equipment. In addition to the centralized arrangement of equipment, the noise generated by each equipment is heavily superimposed and interfered with each other, thus forming multiple noise pollution sources. Moreover, there are various types of noise, including dull low-frequency noise and harsh high-frequency noise. The noise of the power plant is not only from the main machine and its auxiliary machinery, but also from the main valves of the pipeline system. The frequency range of the noise is: the low frequency is less than 500Hz, the medium frequency is 500-800hz, and the high frequency is more than 800Hz. The residential area around the power plant is greatly affected by the noise, which causes the residents' life problems and also causes noise physical damage to the workers of the power plant. Therefore, it is necessary to control the transmission path by establishing noise barrier in power plant.
